Traction Induction Motor Speed Controller 36v 48v 72V Current Max 400A A5 for Small and medium material handling

Name: Traction Induction Motor Speed Controller 36v 48v 72V Current Max 400A A5 for Small and medium material handling
Brand: DALA
Price: 1 USD

Quality Traction Induction Motor Speed Controller 36v 48v 72V Current Max 400A A5 for Small and medium material handling wholesale

Brand Name : DALA

Model Number : A5

Place of Origin : Chengdu,China

MOQ : Negotiable

Price : Negotiable

Packaging Details : standard packing, as customer demands

Delivery Time : 7 - 15 working Days

Payment Terms : L/C,T/T,etc.

Motor type : AC Motor

Function : Traction

Appolication : Small and medium material handling，such as golf，Personnel Carriers,light one-road

Nominal Voltage Range (VDC) : 36/48V,72V

Maximum Current : 400A

Size : 193*175*78mm

Contact Now

Cutting-Edge AC Motor Management: A5S Series

Product Showcase:

Experience the next level of AC motor control with the A5S series, setting new standards in power, precision, and efficiency. Engineered with leading-edge technology and proprietary innovations, it ensures extended longevity and unwavering reliability.

Versatile Utility:

Tailored for a diverse range of utility vehicles, including buggies, golf carts, electric cars, and material handling equipment like pallet trucks and forklifts.

Key Features:

Comprehensive Functionality

Boasts a wide operational frequency range from 0 to 300Hz.
Capable of delivering up to 400A output across 36-72V system voltages.
Supports advanced braking and control features for enhanced safety and efficiency.
Employs cutting-edge vector control algorithm for unparalleled torque optimization.
Allows for effortless motor characterization without removal, ensuring universal compatibility.
Includes automatic temperature compensation and remote calibration for seamless operation.
Utilizes advanced PWM techniques for minimized motor harmonics and superior efficiency.

Advanced Safety and Reliability

Features an insulated metal substrate power base for superior heat dissipation.
Utilizes proprietary architecture for enhanced reliability and performance.
Dual microprocessors ensure maximum functional safety performance.
Includes reverse polarity and short circuit protections for added safety.
Comprehensive fault detection function with support for various fault scenarios.
Sealed to IP65 standards for dust and water ingress protection.

Effortless & Adaptive Integration

Customizable programming tailored to meet the unique requirements of EV OEMs.
Compatible with PC Windows programming and offers intuitive diagnostic tools.
Buzzer alarm for immediate diagnostics and fault identification.
Supports CANbus and CANopen protocols for seamless integration.

Specifications

Content	Parameters
Model	A5-4401	A5-4351	A5-5401	A5-5351
Nominal Input Voltage	36/48	36/48	72	72
2 Min RMS Current Rating (Arms)	400A	350A	400A	350A
60 Min RMS Current Rating (Arms)	175A	150A	175A	150A
Sensor	Incremental encoder
Communication	CAN
Operating Temperature	-30℃~55℃
Storage Temperature	-40℃~85℃
Insulation	10MΩ Insulation resistance, 0.05mA leakage @ DC 500V In/Out on casing.
IP Rating	IP65
Efficiency	97%
Cooling	Self-cooled
Vibration Standard	GB/T2423
Control Method	IFO Vector
Heatsink Requirement	Installed in well-ventilated or an air cooling system is required
Motor Type	AC Induction Motor

Typical Applications

Traction Induction Motor Speed Controller 36v 48v 72V Current Max 400A A5 for Small and medium material handling

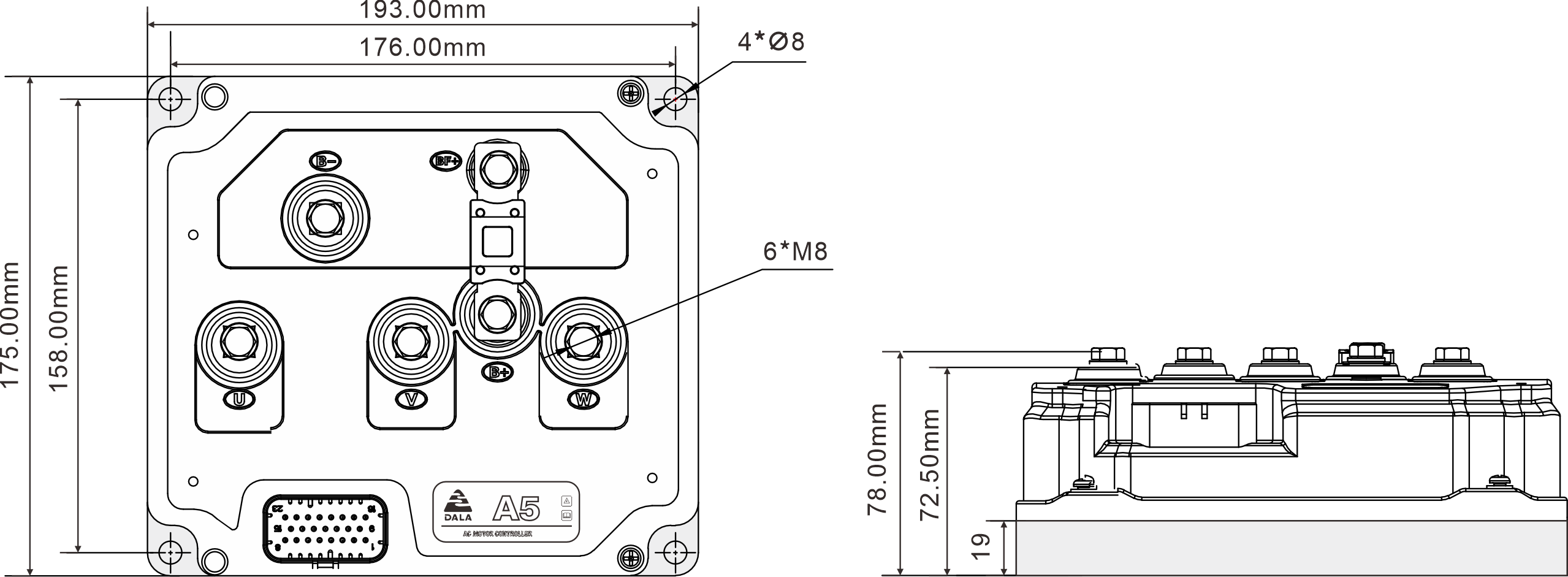

Dimensions

Traction Induction Motor Speed Controller 36v 48v 72V Current Max 400A A5 for Small and medium material handling
